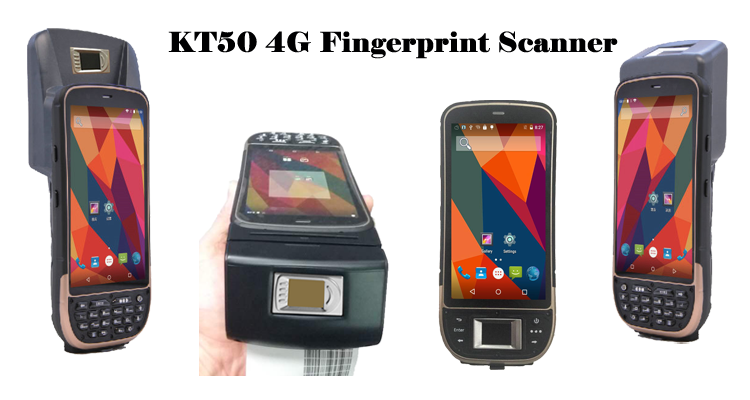

Wifi USB Bluetooth Fingerprint Scanner Reader 5.0 Inch HD IPS LCD

Product Categories

Beijing Speedata Technology Co., Ltd

Contact Now

Name: Wifi USB Bluetooth Fingerprint Scanner Reader 50 Inch HD IPS LCD
Brand: Speedata
Price: 1 USD

Brand Name : Speedata

Model Number : KT50

Certification : CE,ROHS,FCC

Place of Origin : Shenzhen,China

MOQ : 1pcs

Payment Terms : T/T, MoneyGram, Western Union

Supply Ability : 10000pcs per month

Delivery Time : 3-5 days

Packaging Details : Color Box

Product Name : Biometric Fingerprint Scanner

Operating System : Android 5.1

SDK : Available to Offer

CPU : Quad-core 1.3GHz

RAM/ROM : 2GB/16GB

Display : 5.0 inch HD IPS LCD

Display Resolution : 1280*720

Feature : 2G/3G/4G

Dual-band WiFi : 2.4GHz and 5GHz 802.11 a/b/g/n

SIM Card Slot : 2*SIM

Battery : 2600mAh 7.4V

Option 1 : Barcode Scanner

Option 2 : RFID Reader

Option 3 : PSAM

Option 4 : Thermal Printer

Option 5 : Far Infrared Meter Reader

Contact Now

Wifi USB Bluetooth Fingerprint Scanner Reader 5.0 Inch HD IPS LCD

Advantages of KT50 Android Handheld PDA:

Android 5.1 Operation System
4G LTE
1GB RAM or 2GB RAM Custom Made
5.0inch High-definition IPS LCD capacitive touch screen
IP65 Industrial Class, 1.5M drop protection
Special Structure and External Cushion Protection Design
Matched with the machine seat charger
OEM/ODM Accepted
Support 1D/2D Barcode Scanning,LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function etc.
Multiple Functions Optional: card reader, printer, fingerprint, infrared reader, temperature, etc

Wifi USB Bluetooth Fingerprint Scanner Reader 5.0 Inch HD IPS LCD

KT50
Part 1-Basic Function
Development Environment
Operating System	Android 5.1
SDK	Software Development Kit
Language	Java
Fundamental Characteristic
CPU	Quad-core 1.3GHz ARM® Cortex-A53 (LPDDR2 and LPDDR3)
RAM/ROM	2GB/16GB
Extension	Micro SD/TF card max 64GB
Display	5.0 inch HD IPS LCD 1280*720 with multi-point touch capacitive screen
Communication
4G WWLAN	FDD B1B3B7 TDD B38B39B40
	WCDMA B1B2B5B8
	EVDO BC0 GSM B2B3B5B8
Dual-band WiFi	2.4GHz and 5GHz 802.11 a/b/g/n
G-Sensor	Yes
Bluetooth	V2.1+EDR / 3.0+HS / V4.0 Low Energy (LE)
GPS	Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN) /Full AGPS
GPS	DGPS (optional)
Physical Characteristic
Dimension	1757628mm (Basic)
Weight	400g with battery (Basic)
SIM Card Slot	2*SIM
Battery	Rechargeable Li-ion battery 2600mAh 7.4V
Battery	500hours standby time, up to 6hours calling time, 4hours charging time
Camera	8MP Camera
Camera	Support still image and video capture
Audio	3.5mm
Keypad	Front 20 keys, Side 3keys
Interface	1MicroSD/TF + 1Audio Jack + 1Micro USB + 1Power Jack
Interface	USB Host (Optional), RS-232 (Optional)
User Environment
Operating Temperature	-10 to 50℃
Humidity	10%RH - 90%RH (Non-condensing)
Protection Level	IP65
Drop Resistance Level	1.5M

Part 2-Optional Module
Barcode Scanner
1D Scanner	Symbol SE955
	Newland EM1300
	Honeywell N4313
1D/2D Scanner	Symbol SE4500
1D/2D Scanner	Honeywell N6603
RFID Reader
LF RFID Reader	134.2KHz, ISO 11784/11785, FDX-B/HDX
LF RFID Reader	125KHz
HF RFID Reader	13.56MHz, ISO 14443A/B, ISO 15693
NFC Reader	13.56MHz, ISO 14443A/B
UHF RFID Reader	860-960MHZ ISO18000-6C (EPC Gen2)-Chinese Chipset
UHF RFID Reader	860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode-with Impinj R2000 shipset, long distance reader
Biometric Fingerprint
Fingerprint Sensor	Crossmatch TCSIG (meet FBI FIPS201)
Fingerprint Sensor	Crossmatch TCS1B (meet STQC)
Other Module
DGPS	Ublox LEA-6T (with RTK)
PSAM	ISO7816 (SIM)
MSR	Compatible with one, two, three track(without PCI, EMV security certification)
IC card reader	ISO7816 ID-1
Printer	Integrated 2inch direct thermal line printing
Far Infrared Meter Reading	IEC62056-21 (IEC1107) communication protocol
